Semi Auto Mineral Water Stretch Bottle Blow Manufacturing Machine / Equipment / Line / Plant / System

Name: Semi Auto Mineral Water Stretch Bottle Blow Manufacturing Machine Equipment Line Plant System
Brand: FillPack
Price: 1 USD

Cheap Semi Auto Mineral Water Stretch Bottle Blow Manufacturing Machine / Equipment / Line / Plant / System for sale

Brand Name : FillPack

Model Number : FP-4000S

Certification : CE. ISO9001

Place of Origin : China,JiangSu,Zhangjiagang

MOQ : 1 set/pcs

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram

Supply Ability : 1 set / month

Delivery Time : 35-40 days after deposit receipt

Packaging Details : Sea worthy package

bottle volume : 250ml-2L

Output : 3500-4500bph

Cavitiy : 4 cavities

Dimension : Customized

Power : 24kw

Weight : Customized, 6000kg

Condition : New

Application : PET bottle

Automatic : Yes

Blow moulding type : Stretch blow moulding

Voltage : 380V/220V 3 phase 50HZ / 60HZ / Customized

Warranty : 1 year

After-sales service provided : Engineers available to service machinery overseas

Contact Now

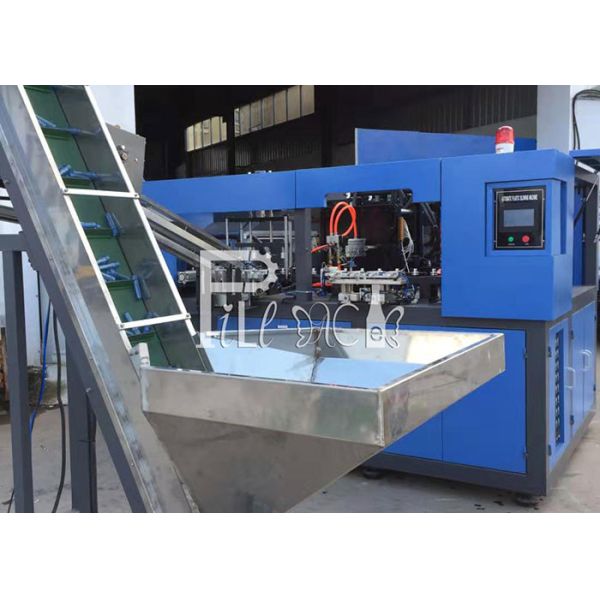

Servo automatic 4 Cavity PET bottle blow molding machine suit

>>> Product Introduction:
FP-4000S servo automatic 4 Cavity PET bottle blow molding machine is suitable for blowing PET bottles of various shapes, volume from 250ml to 2000ml, wide application for blowing mineral water bottles, soda bottles,cola bottles.etc.

>>> Product Features:

●1. Advanced PLC control system with a user-friendly panel and time-control precision of PLC up to 0.01second

●2. Equipped with special designed air storage unit

●3. Using Infrared preform heater

●4. Independent Temperature Control for different heating lamp to get ideal preform heating results

●5. Heating lamps are adjustable in directions to suit various preforms.

Semi Auto Mineral Water Stretch Bottle Blow Manufacturing Machine / Equipment / Line / Plant / System

>>> Flow and Auxiliary machines:

HP Air Compressor → Air Tank → Air Filter →Air Dryer → Air Filter → Chiller → LP Air Compressor →Automatic Bottle Blowing Machine

1. PET Bottle Mold Our PET blowing machine can produce various shape bottles. we can according to your need to design your own bottle and make mold for you.

2. Preform & Cap Molds We also can provide you with preform mold and cap mold according to your demand.

>>> Technical Paramters:

Molding	Mold thickness	mm	240mm



	Mold	mm	500*500mm
	Number of Cavity	Cavities	4
Container	Max.container volume	Itr	2
	Neck.container range	mm	15mm-38mm
	container diameter	mm	20mm-100mm
	container height	mm	50mm-350mm
	container height	mm	50mm-350mm
Theoretical output		bph	3500-4500
Electrical system	Power	v	380v 3Phase /220v 3Phase 50/60HZ
	Really use power	kw	14kw
	Rated Power	kw	49kw

Items	Components	Model
1	Blow Moulding Machine	FP-4000S
2	Preform Unscramble	FP-4000S
3	HP Air Compressor	2.0M3/min 30kg
4	LP Air Compressor	1.6M3/min 10kg
5	Air Dryer	2.0M3/min 30kg
6	Air Filters	2.0M3/min 30kg
7	Air Tank	0.6M3/min 30kg
8	Mould Chiller	3HP
9	Blow Mould	250-2000ml
10	PLC	Delta / Taiwan

Semi Auto Mineral Water Stretch Bottle Blow Manufacturing Machine / Equipment / Line / Plant / System
